Twelve vessels in acrylic and Satin Steel, each delivered with its Hot & Cold Unit, from a 37°F plunge to a 104°F soak. Spec sheets, drawings and full-size footprints for every model, and one person who follows your project.

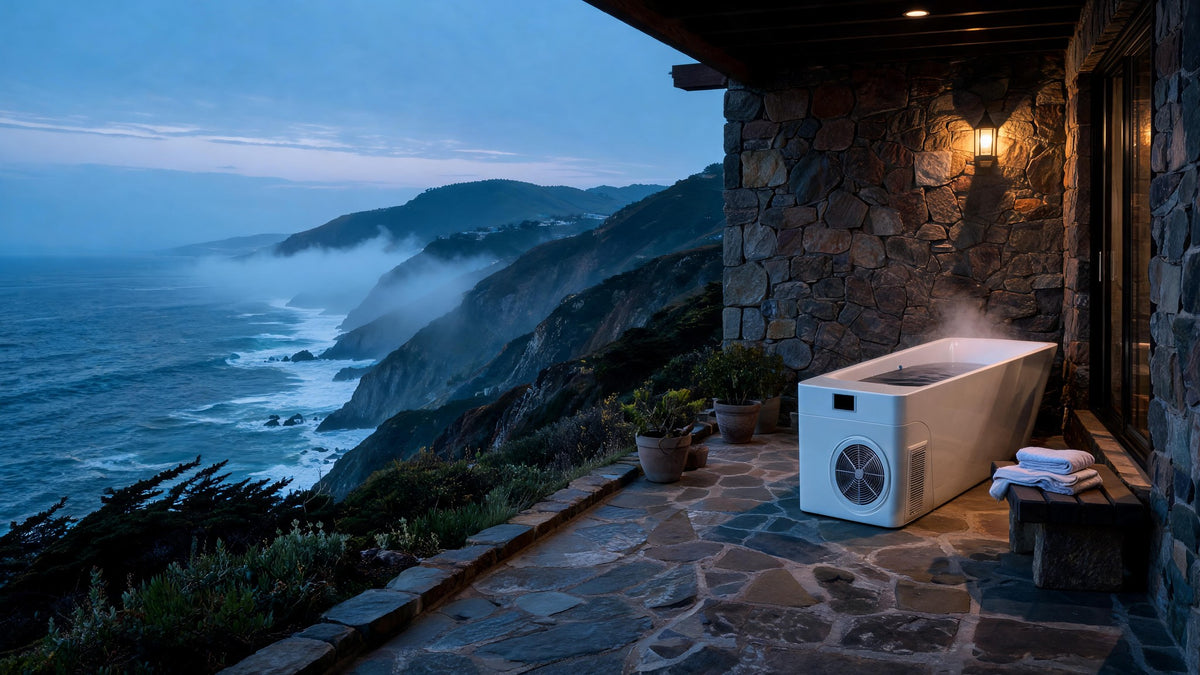

MONOLITH on a covered terrace. Study, rendered.
Who we work with
Choose your side of the drawing. Each line below is something we send, confirm or deliver.
Specify a vessel the way you specify a bath: dimensions, supply and clearances on one sheet per model.
One vessel and its Hot & Cold Unit give a suite or a spa both rituals, cold plunge and hot soak, in the footprint of a freestanding bath.
A hot and cold room built around a single vessel: the unit cools and heats the same water, from 37 to 104°F.
A signature object for the show residence and the amenity floor, on a date you can put in the sales plan.
Studies
These studies are renderings. The rooms are proposals for your own; the vessel, its unit and every figure beneath each image come from the spec sheet.

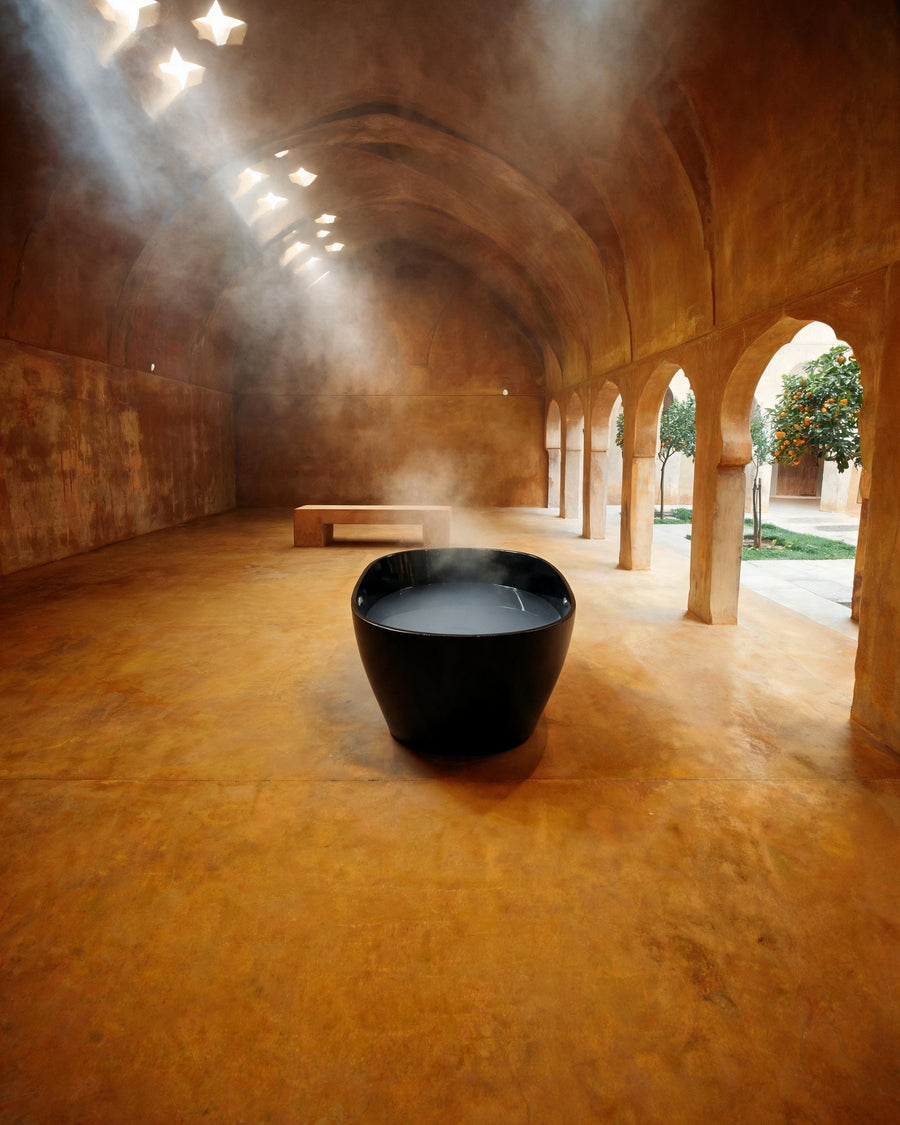

Study 01A vaulted room in warm plaster, one black vessel at its center and a stone bench against the wall.

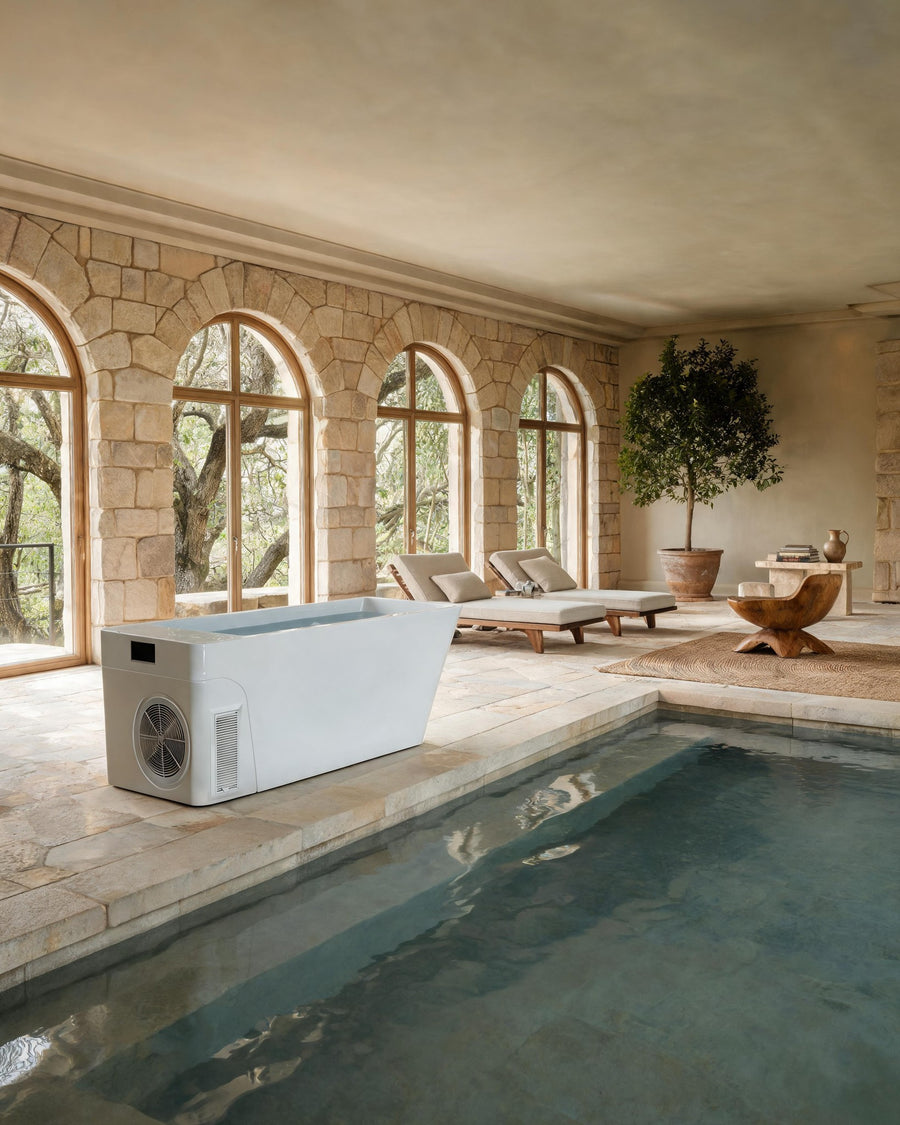

Study 02MONOLITH at the edge of an indoor pool, its Hot & Cold Unit inside one end, the loungers a few steps away.

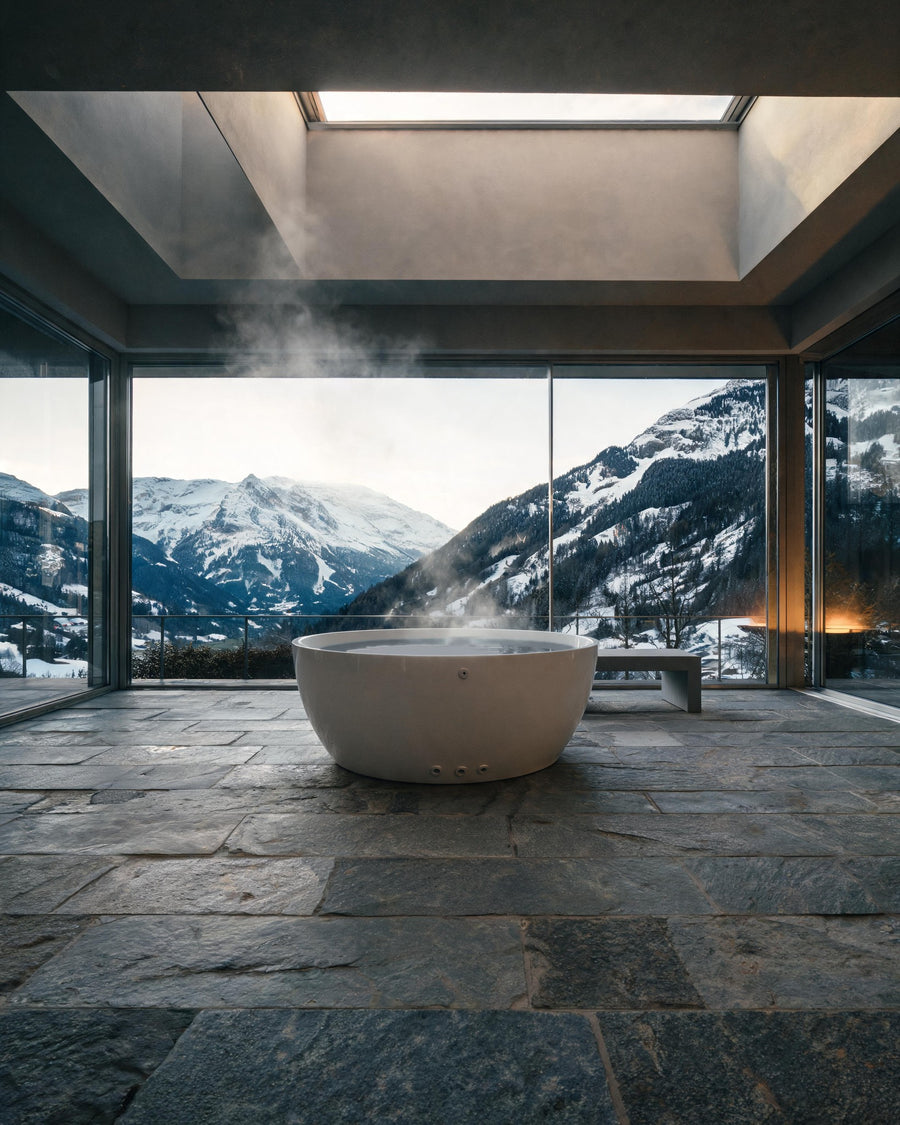

Study 03A round vessel under a skylight, facing the glass, with room for one guest or two side by side.

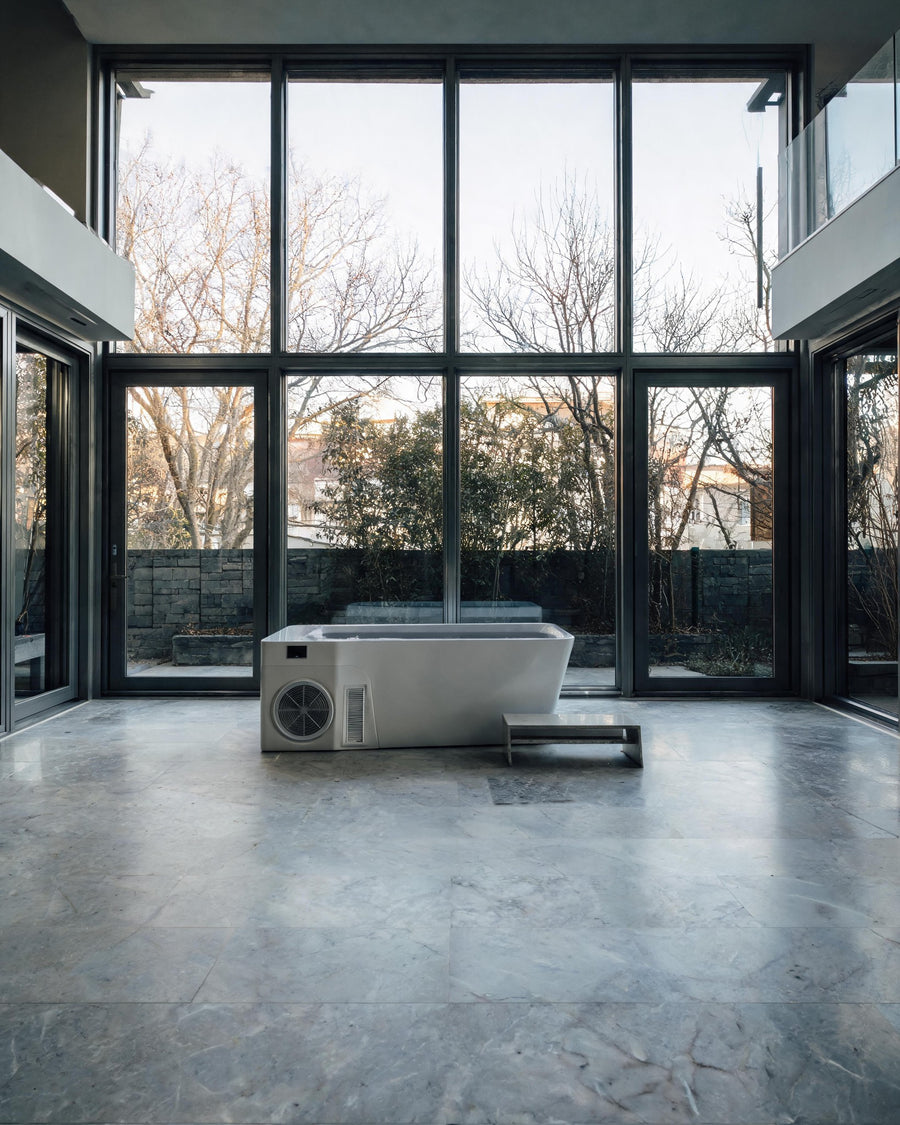

Study 04TIDE on a stone floor in a double-height room, its unit to one side and a step at the rim.
Renderings. Each vessel is shown at its real dimensions; the rooms, furniture and views are proposals.
Specification
Water temperature, set on the touch screen of the Hot & Cold Unit.
About 1,150 W from a grounded 110 to 125 V, 60 Hz outlet. A standard 15 A household circuit is enough.
Clearance around the Hot & Cold Unit on every side. Never in a closet or a cabinet.
From AURUM, 35.4 inches across, to MONOLITH, 76.8 inches long. NOOK, 47.2 inches long, is drawn for a small bathroom.
5-Year Warranty on the shell, 1 year on the Hot & Cold Unit. For private homes.
Public prices, with the Hot & Cold Unit and delivery to the 48 contiguous states included.
The collection
Length × width × height. Ø = diameter.
Delivered in 1 to 2 weeks

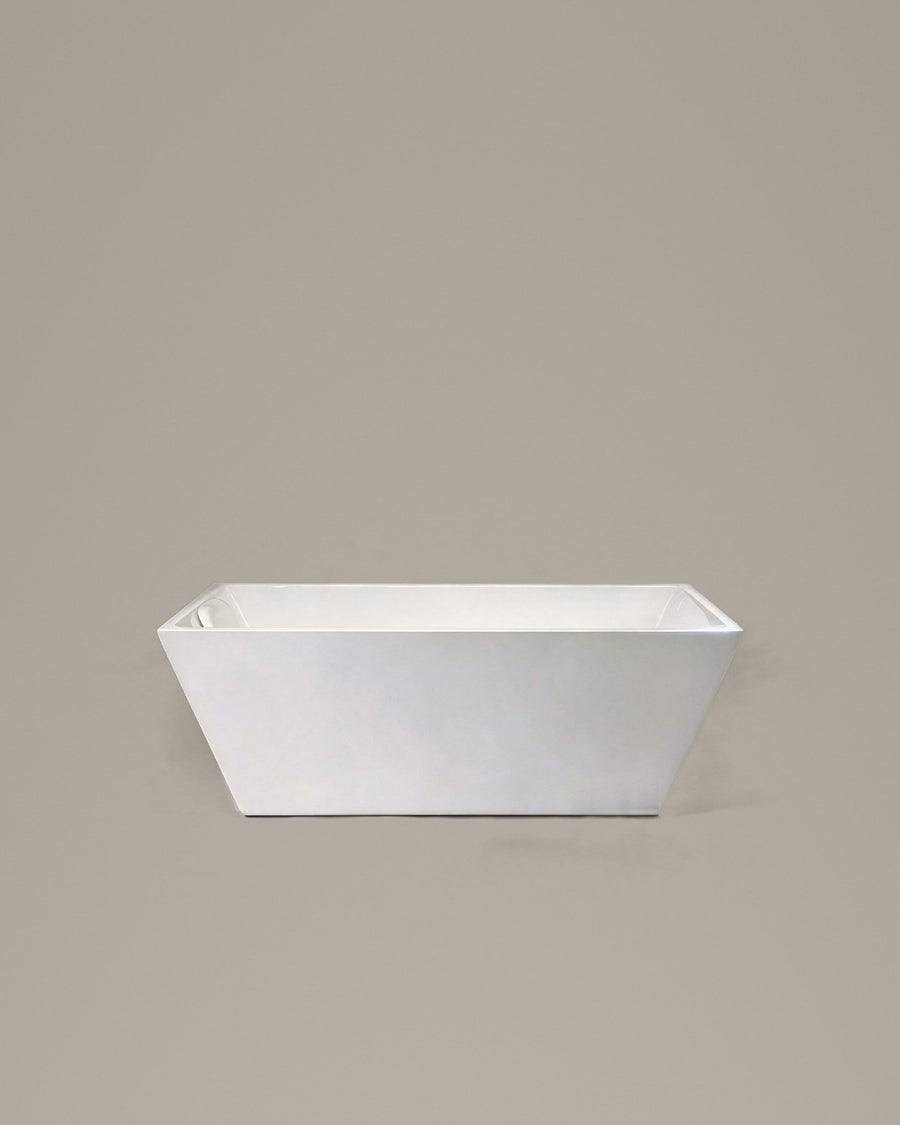

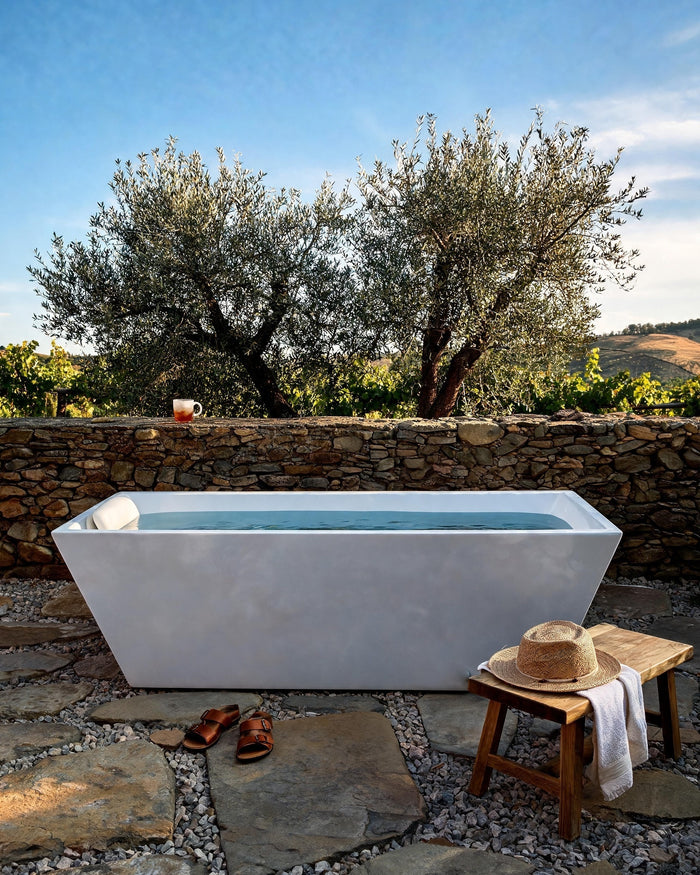

A white acrylic rectangle with flared walls and a flat rim.
| Material | White acrylic |
| Overall, inches | 70.9 L × 31.5 W × 23.6 H in |
| Overall, millimeters | 1800 × 800 × 600 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Delivered in 1 to 2 weeks

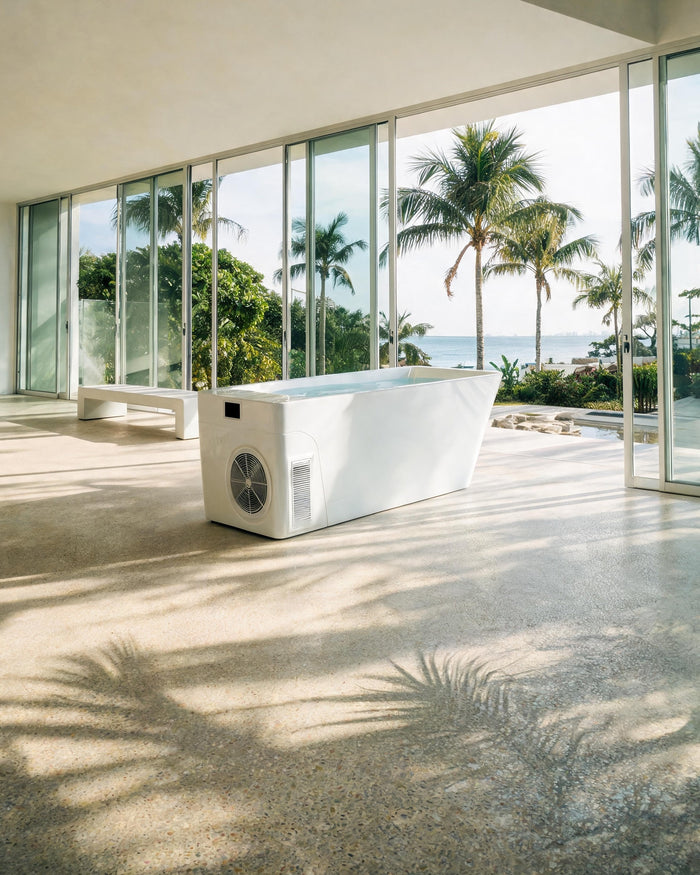

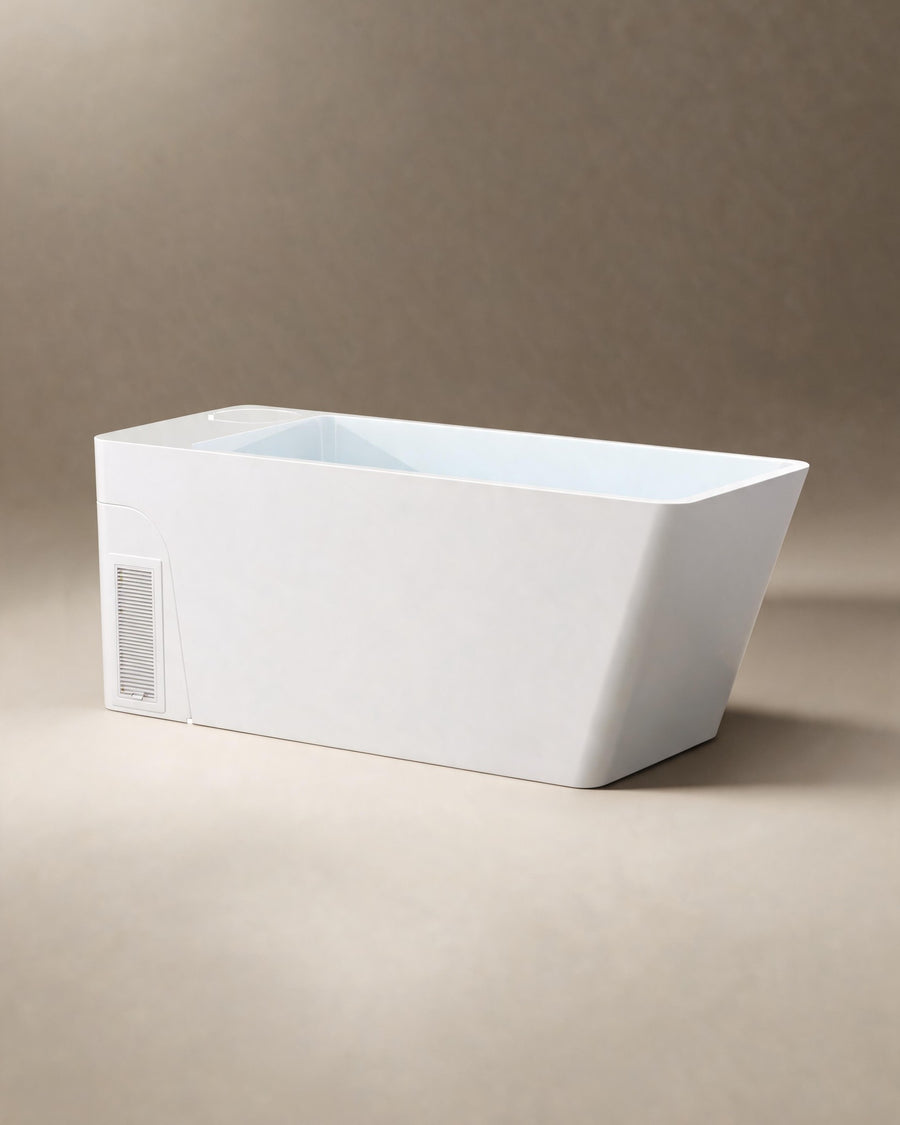

The longest vessel in the collection, its Hot & Cold Unit built into one end.
| Material | White acrylic |
| Overall, inches | 76.8 L × 31.5 W × 28 H in |
| Overall, millimeters | 1950 × 800 × 710 mm |
| Hot & Cold Unit | Built into one end |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
A compact rectangle with softened corners, for the smaller bathroom.
| Material | White acrylic |
| Overall, inches | 47.2 × 28.3 × 23.6 in |
| Overall, millimeters | 1200 × 720 × 600 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
A straight block in white acrylic, square at every corner.
| Material | White acrylic |
| Overall, inches | 66.9 × 31.5 × 22.8 in |
| Overall, millimeters | 1700 × 800 × 580 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
A white acrylic oval with one straight side, to stand against a wall.
| Material | White acrylic |
| Overall, inches | 66.9 × 31.5 × 22.8 in |
| Overall, millimeters | 1700 × 800 × 580 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
The widest oval in the collection, in white acrylic, to lie back in.
| Material | White acrylic |
| Overall, inches | 70.9 × 35.4 × 23.6 in |
| Overall, millimeters | 1800 × 900 × 600 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
Four flat planes of white acrylic, angled outward like a cut stone.
| Material | White acrylic |
| Overall, inches | 66.9 × 31.9 × 22.8 in |
| Overall, millimeters | 1700 × 810 × 580 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner

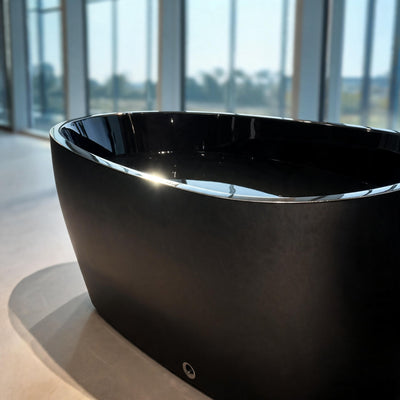

An egg in black acrylic, the only dark vessel in the collection.
| Material | Black acrylic |
| Overall, inches | 66.9 × 31.5 × 22.8 in |
| Overall, millimeters | 1700 × 800 × 580 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
A full circle in white acrylic, with room for two side by side.
| Material | White acrylic |
| Overall, inches | Ø 59.1 × 23.6 in |
| Overall, millimeters | Ø 1500 × 600 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
A long, low oval in Satin Steel.
| Material | Satin Steel |
| Overall, inches | 66.9 × 29.9 × 23.6 in |
| Overall, millimeters | 1700 × 760 × 600 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
A tall Satin Steel barrel you sit in upright, on the smallest footprint in the collection.
| Material | Satin Steel |
| Overall, inches | Ø 35.4 × 43.3 in |
| Overall, millimeters | Ø 900 × 1100 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
Made to commission, about 3 months, in many cases sooner
An octagon of Satin Steel, eight flat faces around one basin.
| Material | Satin Steel |
| Overall, inches | 60.6 × 32.1 × 28 in |
| Overall, millimeters | 1540 × 815 × 710 mm |
| Hot & Cold Unit | Beside the vessel, 20 in clear on every side |
| Controls | Touch screen, companion app |
In the Trade Pack
One PDF covers the whole collection, so you can compare forms and plan the room before you speak with us.
PDF, per vessel

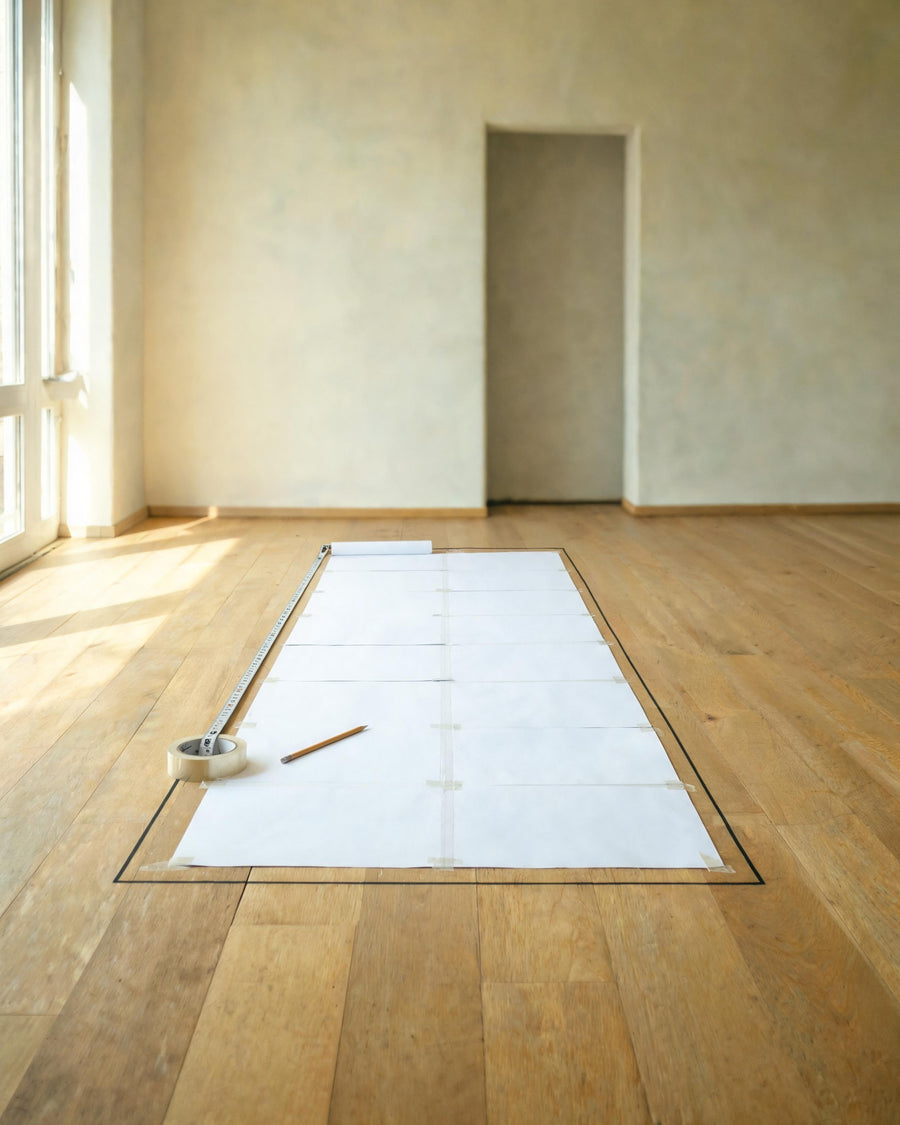

The outline of each vessel at 1:1, to print, tape to the floor and walk around before the drawings are final.
PDF, per vessel
Dimensions, shell, Hot & Cold Unit, water temperature and electrical supply. Weight and capacity on request.
PDF, per vessel
Plan, front and side elevations, dimensioned in inches and millimeters.
Three finishes

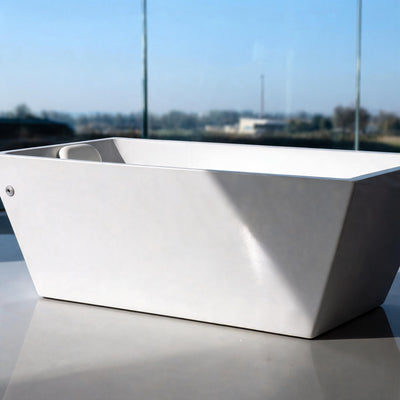

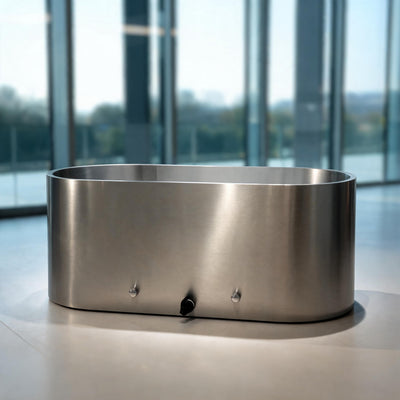

White acrylic for ten vessels, black acrylic for OVUM, Satin Steel for OBLONG, AURUM and FACET.
From any vessel page
Printable, in your client's name or your firm's, with the vessel, its dimensions, the Hot & Cold Unit and delivery to the project address.
Working in CAD or Revit? Every vessel comes with dimensioned PDF drawings; tell us your format in the request below.
Schedule
A vessel made to commission takes about 3 months, in many cases sooner: the time a project spends between design development and finishes. Order it with the plumbing fixtures and it reaches the site before handover. Your order confirmation states the estimated delivery time, and you hear from us as soon as it moves.
Week 0
Spec sheet, drawings and the 1:1 footprint, free to download.
Right after
A formal quote in your client's name or your firm's.
Design development
Card or bank transfer, by secure invoice.
About 3 months
In many cases sooner. TIDE and MONOLITH are delivered in 1 to 2 weeks.
By appointment
To the project address, in the 48 contiguous states.
Handover
The same contact, before and after delivery.
On a fixed date
For a show residence, a launch, or a suite that opens next month, TIDE and MONOLITH are ready now.
TIDEDelivered in 1 to 2 weeks
MONOLITHDelivered in 1 to 2 weeksHotels, spas and rentals
Our 5-Year Limited Warranty is written for private homes. For a hotel, a spa, a club or a rental, we confirm with you, in writing and before any order, the warranty for commercial use, the electrical certification of the Hot & Cold Unit, the number of vessels and the delivery sequence.
Your contact
Every project request is answered by the same person, who confirms each technical point in writing and remains your contact after delivery.
Project questions
A grounded 110 to 125 V, 60 Hz outlet. The Hot & Cold Unit draws about 1,150 W, around 10 A at 120 V, so a standard 15 A household circuit is enough, with residual current protection on the unit.
Our vessels are freestanding. Send us the drawings of a built-in project and we tell you in writing what each vessel allows.
Yes, every vessel can stand outdoors, with the power supply protected from rain. Keep its cover on when the weather turns extreme; for acrylic vessels, a roof or some shade is recommended.
Delivery is by appointment, to the project address, in the 48 contiguous states. Your contractor moves the vessel into place and sets the Hot & Cold Unit beside it, at least 20 inches clear on every side.
Yes, under terms we confirm with you in writing before purchase: warranty for commercial use, electrical certification, number of vessels and delivery sequence.
Order online by card, or ask for a secure invoice and pay by card or bank transfer, in a single payment.
Projects of three vessels or more are quoted at project pricing. Tell us about the project and the number of vessels, and we answer with a formal quote.
Our drawings are dimensioned PDFs, in inches and millimeters. Tell us the format you work in and we tell you what we can send.
